LG Therma V Split Hydro R32 Heat pump
The LG THERMA V Split series is a heat pump that is easy, flexible to install. As the expression split suggests, the outdoor and indoor units are connected by refrigerant piping, thus freezing will not compromise this unit regardless of outdoor ambient temperatures.

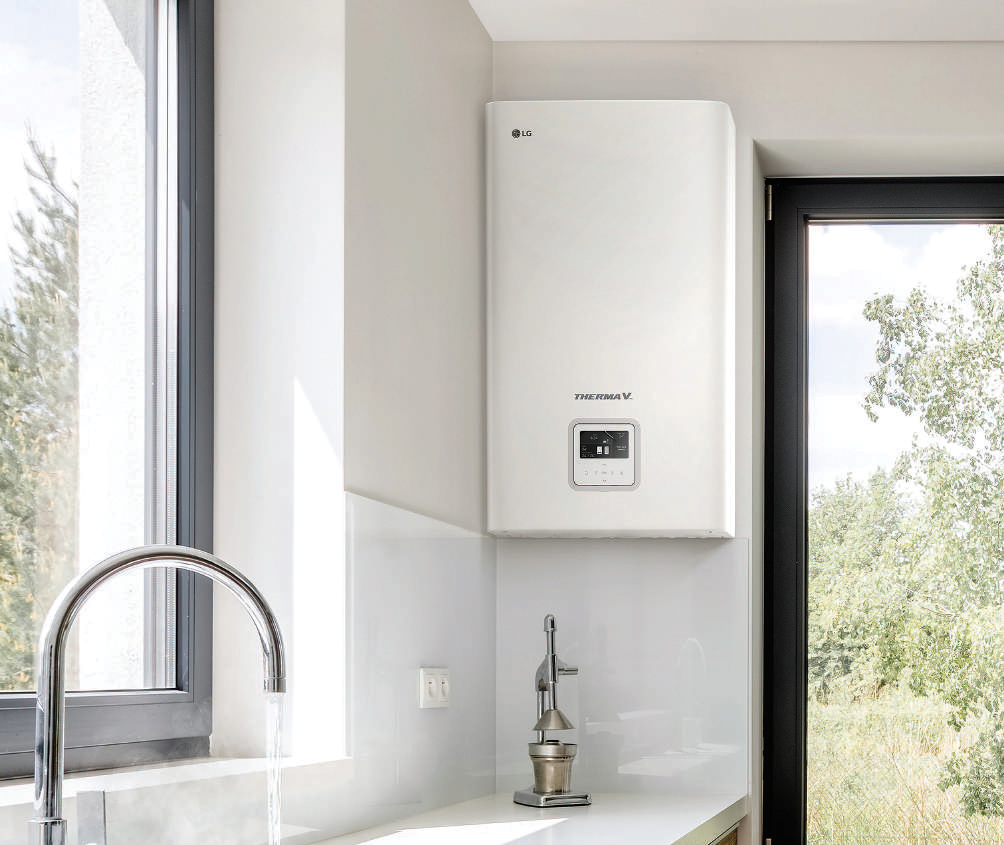

THERMA V Split Hydro Unit is a combination of an outdoor unit and an indoor Hydro Unit with built-in hydronic components such as a plate heat exchanger, expansion tank and water pump.
The outdoor unit is on offer in 4/6 kW and 5/7/9 kW capacity range. R32 Split 4/6 kW model is suitable for new build houses that are well insulated and require a small heating load, while R32 Split 5/7/9 kW model is adapted for both new build and renovation projects.
LG Therma V Split Hydro R32 features:
- Capacity range from 4 and 6 kW for new build and 5 to 9 kW for new build or small renovation
- R32 refrigerant with reduced Global Warming Potential (GWP)
- Maximum flow temperature up to 55° (4/6 kW) and 65° (5/7/9 kW)
- Operation range down to -20° (4/6 kW) and -25° (5/7/9 kW)
- High level hydronic components integration for fast and clean installation

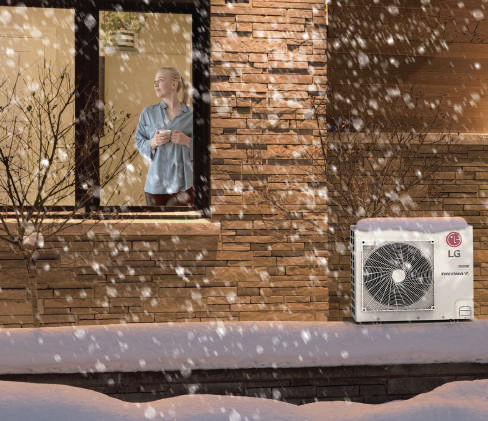

No Potential Risk of Piping Freezing
- Robust to cold ambient thanks to refrigerant piping
- No exposed piping freezing even during prolonged blackouts
High Installation Flexibility Not Restricted by the Site Condition
- Light weight and compact size
- Allows a maximum refrigerant pipe length of 50 m and offers
- 3-way piping connection availability (R32 Split 5/7/9 kW Split)
- Eliminates minimum floor area requirements due to R32 refrigerant (R32 Split 4/6 kW)

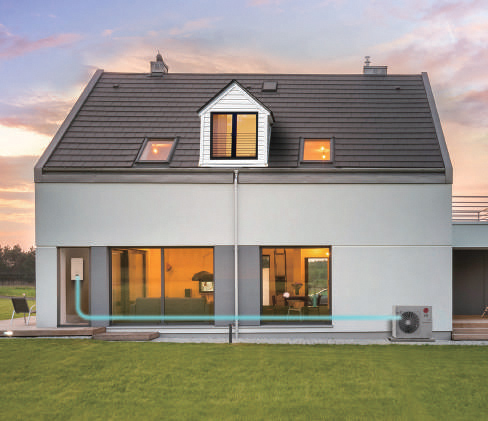

Flexible Refrigerant Piping Design
Installation flexibility is enabled by THERMA V Split’s long pipe length (up to 50 m) and the fact that the refrigerant piping can be connected in three directions: front, side and rear.
Thermofrost Cryo is an official LG Heat Pumps distributor in the UK.
Please contact us to discuss your Heating requirements. Our engineering team will be pleased to assist with product application and pricing on a project basis.
