3mm fin spacing

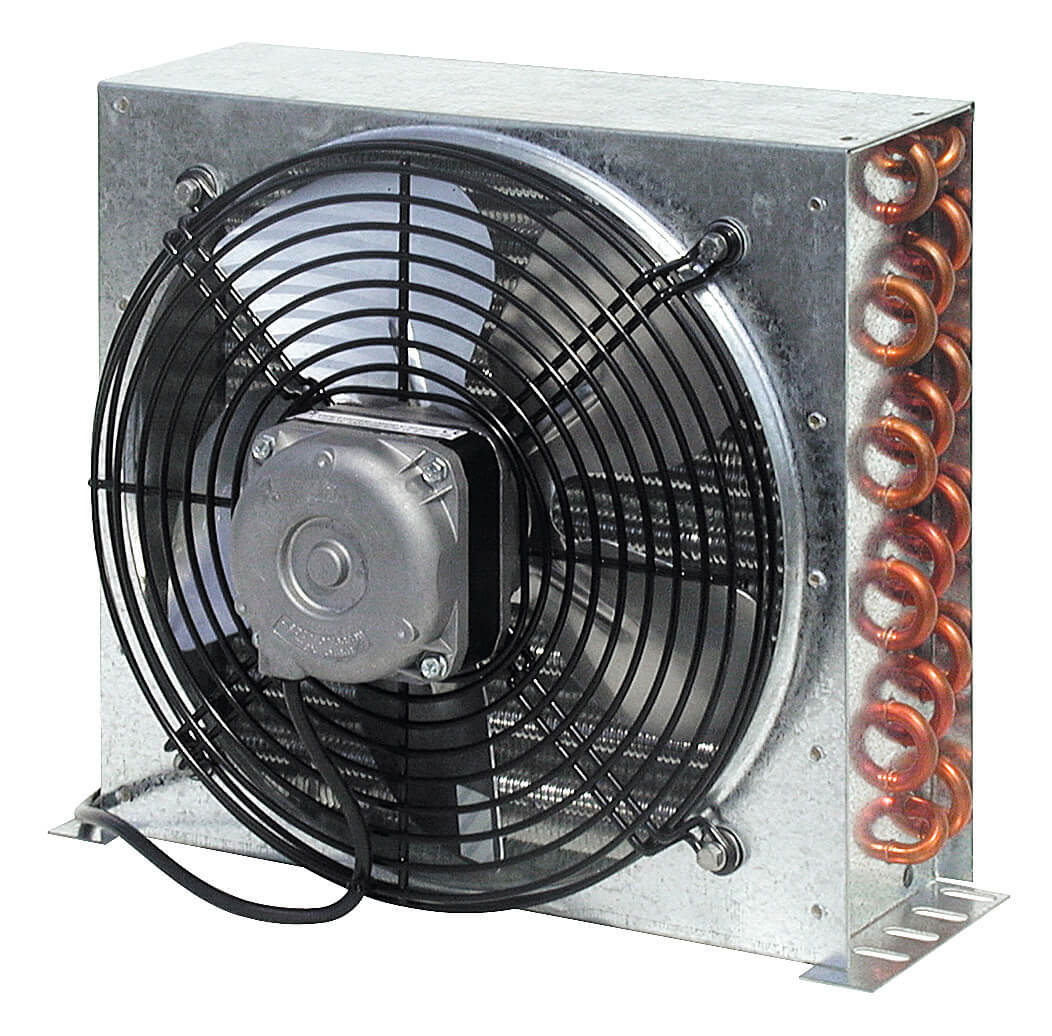

The condenser of the LCE range are particularly suitable for installation in small condensing units.

The entire range is equipped with high efficiency coils made from special profile aluminium fins and inner grooved copper tube, suitable for new generation refrigerants. For the entire range 3.00 mm finn spacing. The fan motors for the standard version are equipped with suction fan and have the following feature: - Single phase 230V/1/50 Hz shade pole - Class B insulation - Epoxy painted iron or polymide fan guards - Supplied with 1000 mm electric cable - Operating temp. -30°C a +40 °C

Documentation	CODE	MODEL	Capacity (15KTD)	Dimensions Incl Fan Motor W (mm)	Dimensions Incl Fan Motor H (mm)	Dimensions Incl Fan Motor D (mm)	Fan Size	Compressor Size (CC) LBP	Compressor Size (CC) HBP	Noise level	List Price
	ECC100	LCE 036	362	210	192	138	172	5	2	31	£107.00
	ECC105	LCE 045	452	210	192	164	172	6	3	31	£119.00
-	ECC110	LCE 048	484	240	220	139	200	7	3	33	£115.00
	ECC115	LCE 057	566	210	192	164	172	8	4	31	£127.00
	ECC120	LCE 063	630	240	220	165	200	9	5	33	£124.00
	ECC125	LCE 066	659	270	255	140	230	9	5	33	£121.00
	ECC130	LCE 077	765	240	220	165	200	11	6	33	£137.00
	ECC135	LCE 087	870	270	255	164	230	13	7	33	£136.00
	ECC140	LCE 089	887	300	280	140	254	13	7	37	£136.00
	ECC145	LCE 107	1066	270	255	164	230	15	8	33	£146.00
	ECC150	LCE 117	1169	300	280	166	254	16	9	37	£148.00
	ECC155	LCE 140	1403	300	280	166	254	20	11	37	£163.00
	ECC160	LCE 168	1680	360	305	166	254	24	13	37	£181.00
	ECC165	LCE 179	1790	380	320	199	300	26	14	44	£193.00
	ECC170	LCE 213	2126	380	320	199	300	28	17	44	£210.00
	ECC175	LCE 234	2340	380	320	213	300	34	18	44	£244.00

3mm fin spacing
