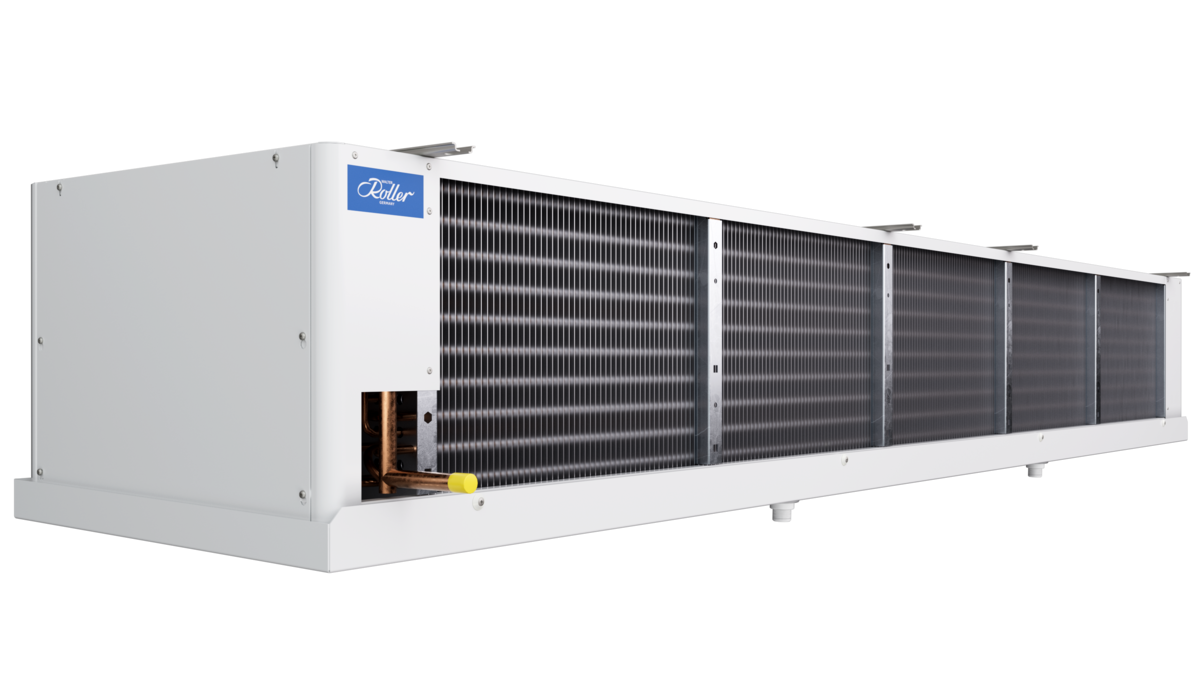

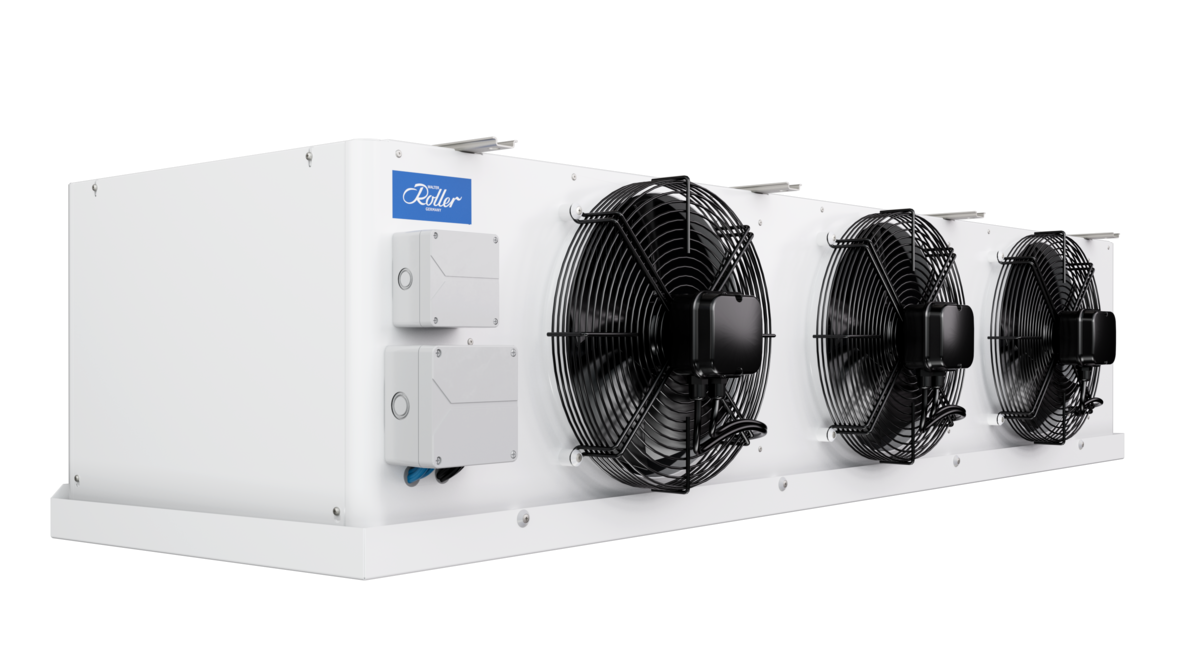

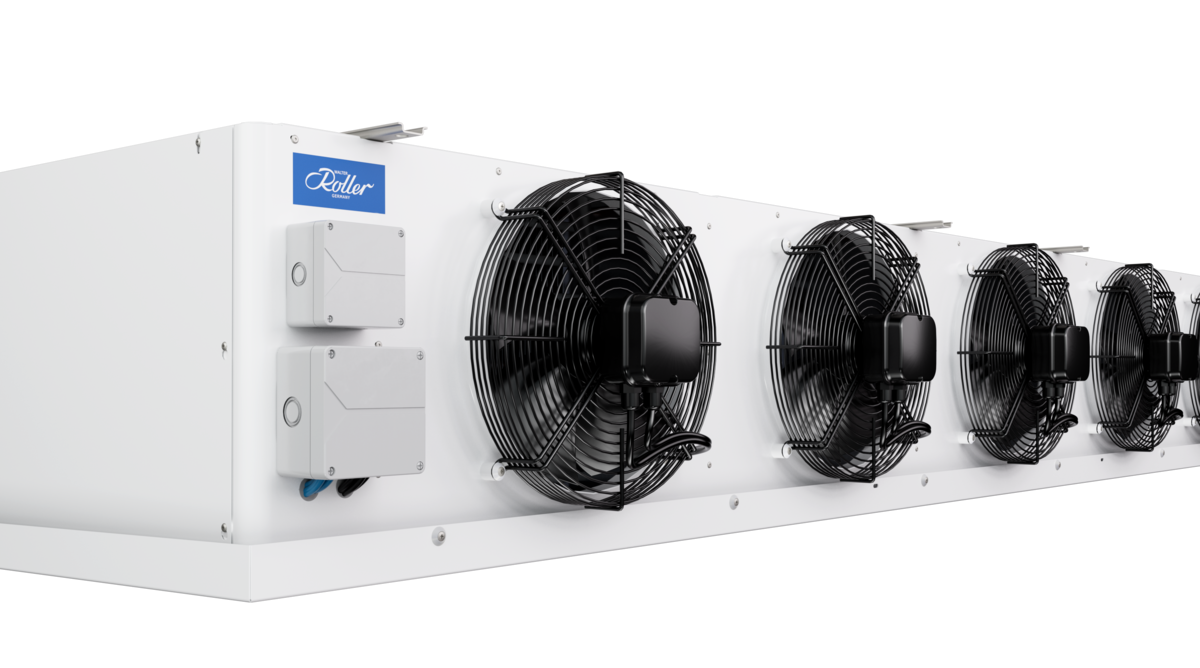

Walter Roller KBKT Cubic Evaporator 7.0 mm - ED

The Walter Roller KBKT its an extra flat air cooler for gentle cooling and demanding processes.

Due to its particularly flat design, coupled with its large heat exchanger surface with 8 rows of tubes in the direction of the air, the KBKT high-performance air cooler is particularly suitable for gentle air conditioning of sensitive refrigerated goods, e.g. baked goods, dough pieces and fermentation interruptions.

Walter Roller KBKT features:

• High power density with a range of 1-5 fans
• 80bar (PS) Operating pressure with CO2
• High-efficiency, high-performance EC fans for energy-efficient operation
• 8 rows of pipes in depth for minimum dehumidification
• Reduced unit height for optimum room utilization and air circulation

Walter Roller KBKT spec:

• Cooling capacity from 1 to 18 kW
• Temperature range: -25 ° +40 °C
• Fin spacing 4.5 / 7 mm
• Defrosting: electric, optional: Brine
• Operating pressure up to 25 bar/ 80 bar with CO2
