Copeland - Dixell XEV

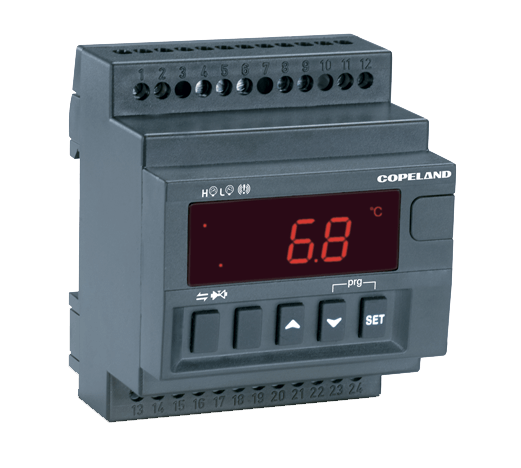

The XEV12D module is able to drive ON/OFF (Pulsed) electronic expansion valves. These modules are able to regulate the superheat (SH) in order to obtain optimized performance. Generals N° digits display: ± 3 d.p. Keyboard: push buttons: 3 Power supply: 24, 110, 230Vac Probe inputs Suction pressure: 4÷20mA/0÷5V Suction temperature: NTC, Pt1000 Digital inputs Free of voltage: present High voltage: present Relay outputs Alarm: 8A configurable Other Valve driver output: ON/OFF up to 30W Hot Key/Prog Tool Kit output: present Serial output: RS485 Alarm recovery by LAN: present Buzzer: optional.

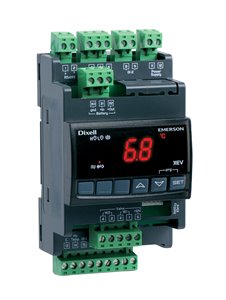

The Dixell XEV22D is designed to drive stepper type electronic expansion valves. These modules are able to regulate the superheat (SH) in order to obtain optimized performance.

Exclusive Dixell UK distributor - Low price guaranteed - Technical experts

Exclusive Copeland Electronics UK distributor - Low price guaranteed - Technical experts

Documentation	CODE	MODEL	Transducer input	Temp input	Maximum load	Supply	List Price
-	DIXL812	XEV12D	4-20 mA	PT1000	30 W	230V AC	£119.00
-	DIXL813	XEV22D	4-20 mA	PT1000	0.33 A / 0.9A	24V AC/DC	£165.00
