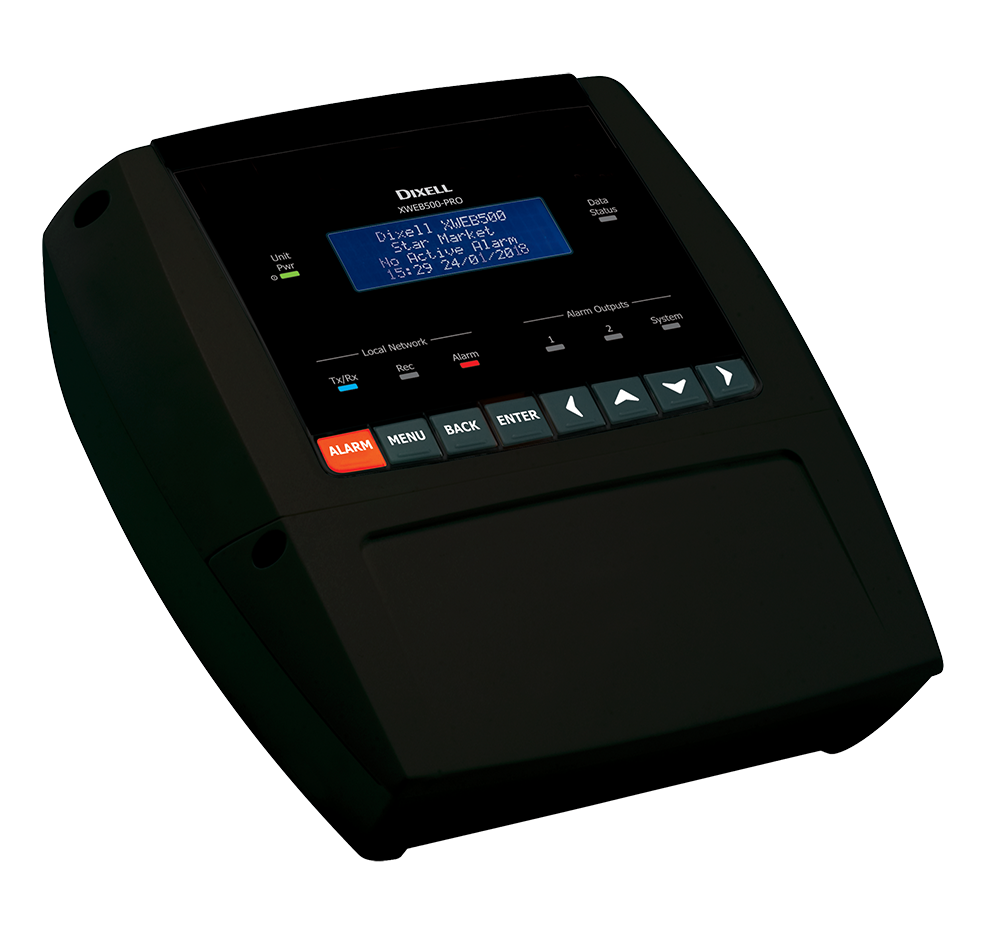

Dixell XWEB500D - 500EVO

The Dixell XWEB500D and XWEB500EVO are the ideal solution for medium installations up to 20, 36, 50 or 100 devices, such as petrol stations, supermarkets or storage centers. Their innovative and useful features make the instrument suitable for medium-large applications such as production and storage goods centers.

Thanks to the two available formats, they can be installed whether on DIN Rail or wall or panel mounting, but can also be used as desk instrument. Connection from PC is made simply using standard web browser (Microsoft Internet Explorer® and Firefox®); the information is displayed as web pages. Both intranet/internet remote connection and modem connection are available via RJ45 ethernet port or via RS232 serial port. Alarm signalling is very flexible and can be done through Fax, e-mail, SMS and also via relay output.

Main features:

• Data capture and alarm monitoring WEB server connectable to Dixell’s controllers with serial output or to others
• ModBUS-RTU compatible devices
• Ability to operate in stand alone mode thanks to the local display and keyboard (XWEB500)
• Easy DIN Rail mounting (DIN) directly inside the machine board or wall mounting with brackets (XWEB500D)
• Quick and easy connection to Web pages with dedicated interface for PDA/Smartphone
• Possibility to see and modify the parameters of the connected devices remotely
• Complete and simplified analysis of the unit functioning thanks to a powerful tool that allows to view data in graphical format (Excel®)
• One year of stored data inside the XWEB memory (one year of stored data with 15min sampling time for 36 or 100 controllers)
• XWEB500D is always accessible even with isolated installations using the built-in GPRS connectivity (optional)
• Layout for netsurfing of web site in graphic format
• Data export on USB pendrive
• Performance Meter for cooling demand control
• Alarm sending via FAX, SMS or e-mail
• 15VA max power absorption for XWEB500D and 20VA max for XWEB500
